防护涂料的全面集成系统

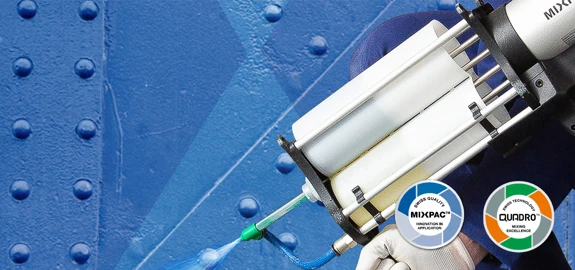

灵活喷涂的手持式系统 940 mL - 1500mL
米帕MIXPACTM MixCoatTM 手持式双组份涂料应用系统，适用于高效、清洁且成本优化的修复施工。
可手动或气动操作，配合使用不同的配件，可实现刷涂和喷涂应用。
广泛的应用
- Waterproofing
- Roofing
- Wind Energy Aerospace
- Truck Beds
- Roofing
- Wind Energy Aerospace
- Truck Beds
- Tank Coatings
- Pumps / Industrial Coatings
- Water and Sewer
- Marine
- Pumps / Industrial Coatings
- Water and Sewer
- Marine
一套系统涵盖多种防护涂料应用：
- 难以触及的区域非常适合使用米帕灵活的 MixCoat 系统。
- 在没有压缩空气可用的情况下，使用 DM 进行手动双组份涂料施工。
- 喷涂设备 DPS 和 DPF 的双级扳机设计，用于雾化空气和材料。
- 有精确配比和混合工艺的胶筒系统降低了人为失误的风险。
.png?language=zh-cn "文章40图1")
四款适用于涂料应用的 MixCoat 系统：

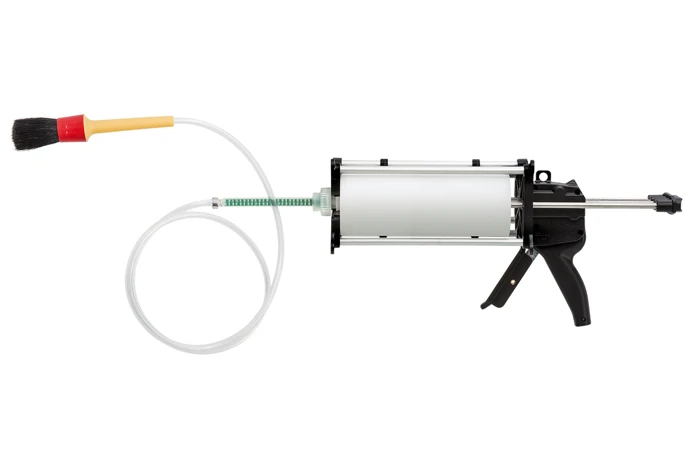

MIXPAC MixCoat DPM
- Manual power
- Application of high solid epoxies and touch ups
- Efficient repair work
- Clean process
- Cost optimized
Less waste of unused material
- Application of high solid epoxies and touch ups
- Efficient repair work
- Clean process
- Cost optimized
Less waste of unused material

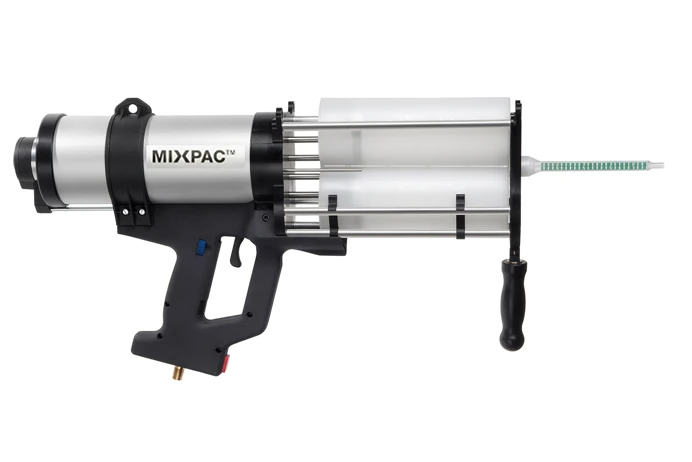

MIXPAC MixCoat DPD
- Pneumatic power
- Application of high solid epoxies and touch ups
- Pneumatic version of the DM
- Application of high solid epoxies and touch ups
- Pneumatic version of the DM

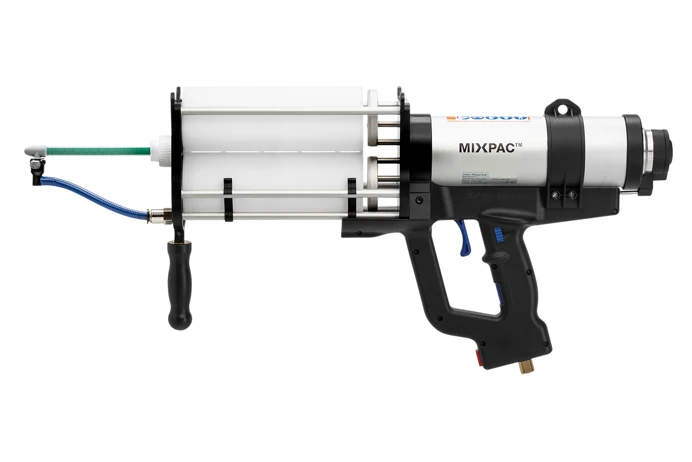

MIXPAC MixCoat DPS spray
- Pneumatic power
- Air assisted spraying
- Light weight
- Portable, pneumatic system for small volume applications, (e.g. touch ups, repairs)
- Ideal for dirty and dusty environments
- Quick setup, cleaning, and breakdown
- Minimal time for maintenance
- Compatible with single and dual line flex hoses
- Air assisted spraying
- Light weight
- Portable, pneumatic system for small volume applications, (e.g. touch ups, repairs)
- Ideal for dirty and dusty environments
- Quick setup, cleaning, and breakdown
- Minimal time for maintenance
- Compatible with single and dual line flex hoses

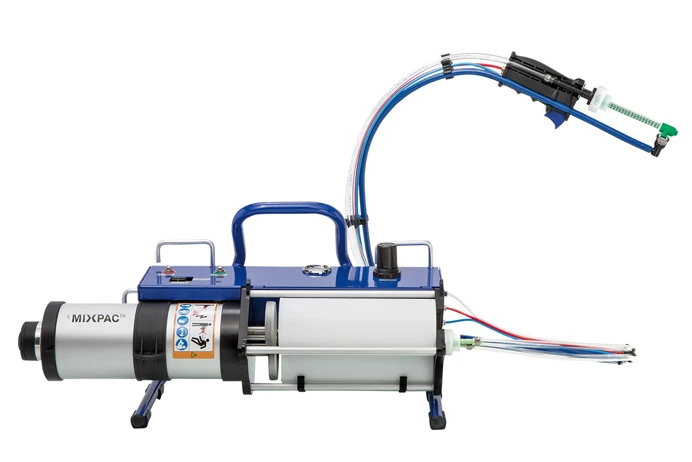

MIXPAC MixCoat DPF Flex
- Pneumatic power Air assisted spraying Including a flexible hose
- For areas with extreme limited access
- Robust but flexible design, (self standing or mounted)
- Maximum flexibility for tight and angled spaces
- Dual-stage trigger for comfortable one-handed operation
- 90° tip for tight angles
- Straight tip for larger areas access
- For areas with extreme limited access
- Robust but flexible design, (self standing or mounted)
- Maximum flexibility for tight and angled spaces
- Dual-stage trigger for comfortable one-handed operation
- 90° tip for tight angles
- Straight tip for larger areas access
听听我们的专家怎么说：
“米帕MixCoat 系统能够实现双组份涂料的精确涂覆和高效混合，适用于管道修复及其他防护涂料应用领域。其灵活性和易用性确保了即使在复杂环境中也能获得一致的涂覆效果，提升了涂层的耐久性和性能。”
Sebastian Paus，防护涂料市场经理，从业超过 10 年
Ask our experts ...
Protective Coatings experts at medmix:兼容胶筒的系统：
米帕系统技术：
- 阀杆活塞技术，实现无泄漏存储和快速灌装
- 独立出口
- 无交叉污染
- 安全储存
- 与所有 MixCoat 混合管和胶枪兼容
- 所有胶筒均为 PP 材质
- 带自排气技术的唇形密封活塞
- 得益于F系统技术的出口，可实现无交叉污染，且易于重新密封。
米帕MixCoat 系统：
- 配比为 1:1、2:1、3:1、4:1 的双组份胶筒
- 要切换配比，只需更换推杆托盘即可。
耐热性：
- 加热时，能优化性能并减少胶筒受热膨胀。
- 经验证，可加热至 50°C

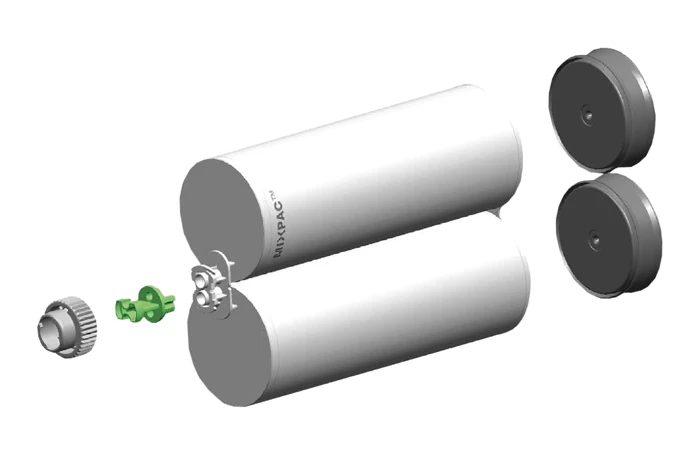

MixCoat 1500mL 1:1
MIXPAC cartridge technology
Reinforced PP
Reinforced PP

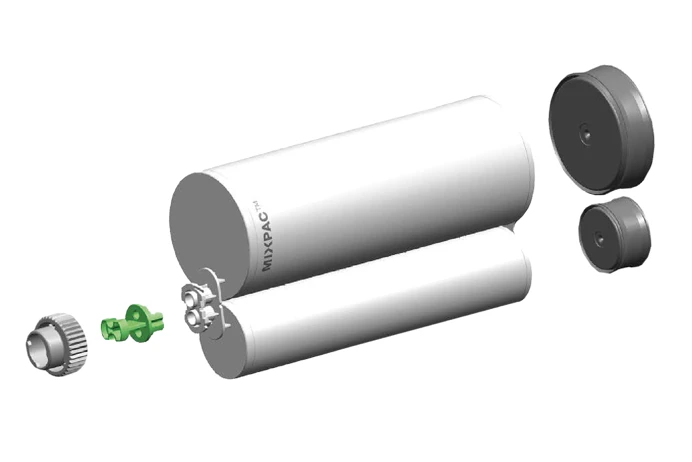

MixCoat 1125mL 2:1
MIXPAC cartridge technology
Reinforced PP
Reinforced PP

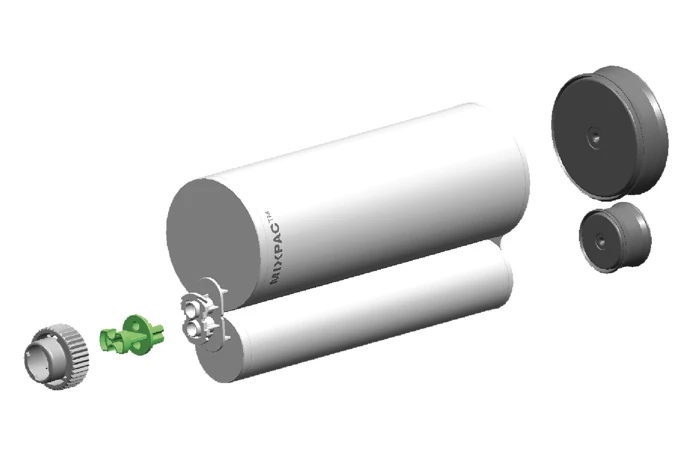

MixCoat 1000 3:1
MIXPAC cartridge technology
Reinforced PP
Reinforced PP

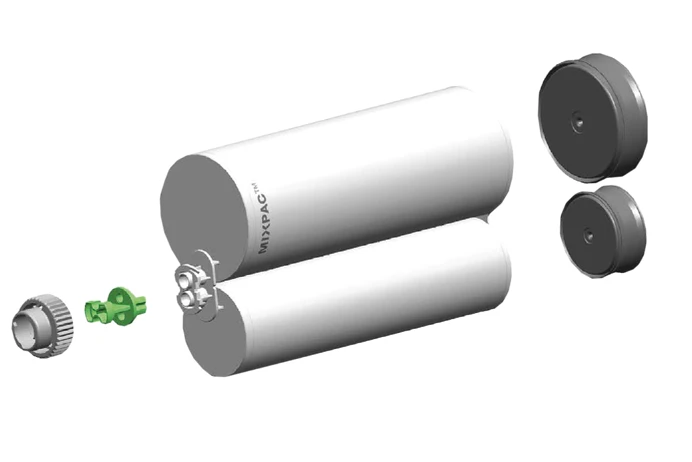

MixCoat 940mL 4:1
MIXPAC cartridge technology
Reinforced PP
Reinforced PP
高品质的米帕和 QUADRO 混合技术：
采用 QUADRO 和米帕技术，完全兼容F 系统接口的混合管采用 QUADRO 和米帕技术，完全兼容F 系统接口的混合管采用 QUADRO 和米帕技术，完全兼容F 系统接口的混合管

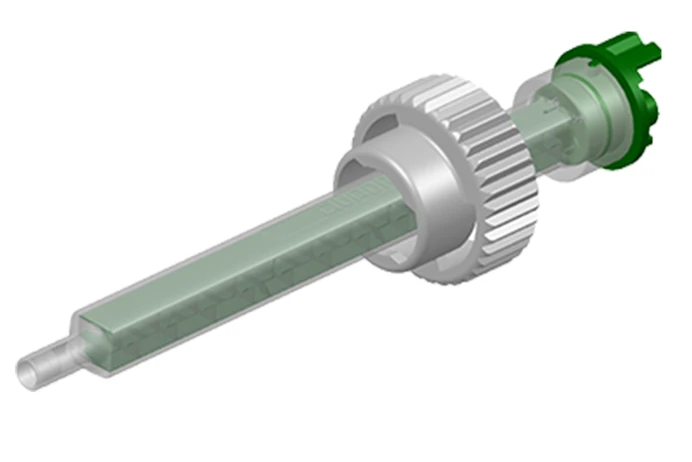

QUADRO MFQ (no spray)
Dual non return valve to avoid dripping and cross contamination
QUADRO mixing technology
For low viscose materials
QUADRO mixing technology
For low viscose materials
QUADRO MFQA (spraying)
QUADRO MFQA (spraying)

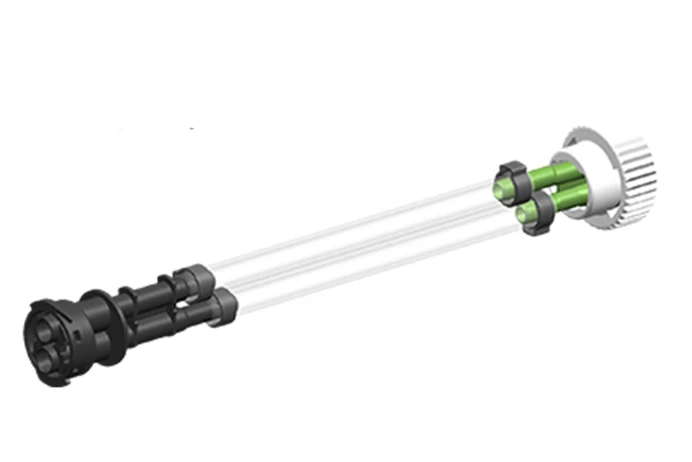

MIXPAC DFL
Dual non return valve to avoid dripping and cross contamination
Extension of the point of mixing to the mixer at the end of the hose
Extension of the point of mixing to the mixer at the end of the hose

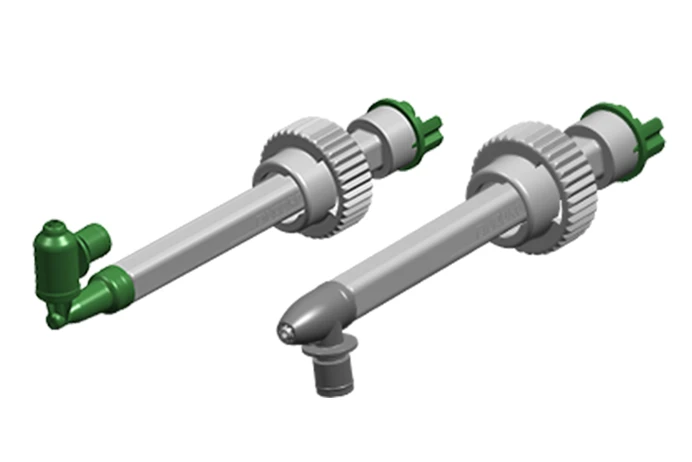

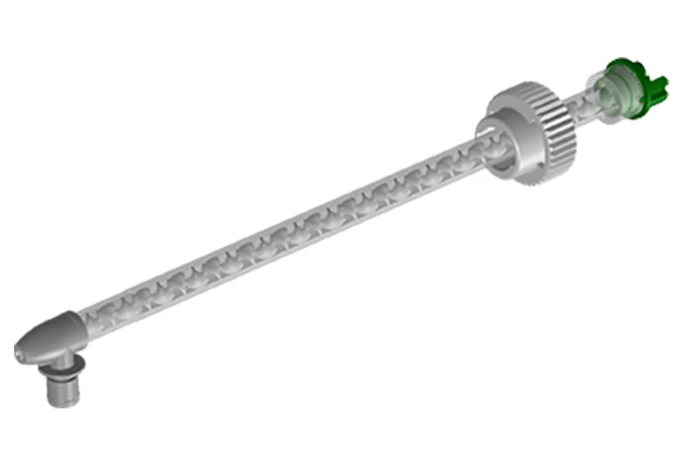

MIXPAC MFH (spraying)
Optional dual non return valve to avoid dripping and cross contamination
Helix mixing technology
Straight and 90° angle tip
Color code white interface standard / Green interface double non return valve
Helix mixing technology
Straight and 90° angle tip
Color code white interface standard / Green interface double non return valve

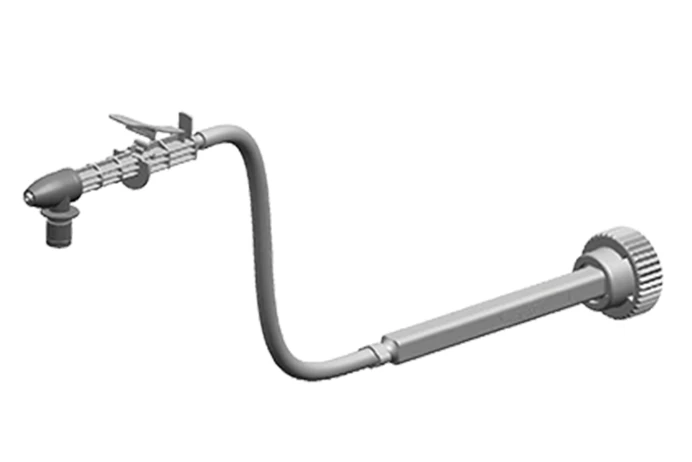

QUADRO FHS (spraying)
Hose extension for DPS and Hybrid system

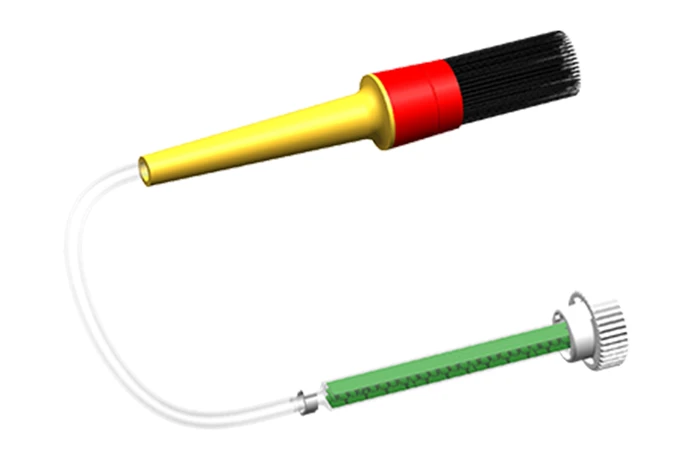

QUADRO MFQ (brush)
Flex Hose Brush
Paint is fed directly into the brush
No dipping in the bucket
No premixing
Easy to use system
Paint is fed directly into the brush
No dipping in the bucket
No premixing
Easy to use system
需要了解更多 MixCoat 系统的成功应用案例？
更多信息下载：获取 MixCoat 产品目录、客户在不同应用中使用MixCoat 系统的专业文章和案例。
